Preparation

  • Make sure that the client is installed.
  • Make sure that the Strawberry-managed storage location media_1/media is accessible by the client computer.

First-time Configuration and Re-Configuration

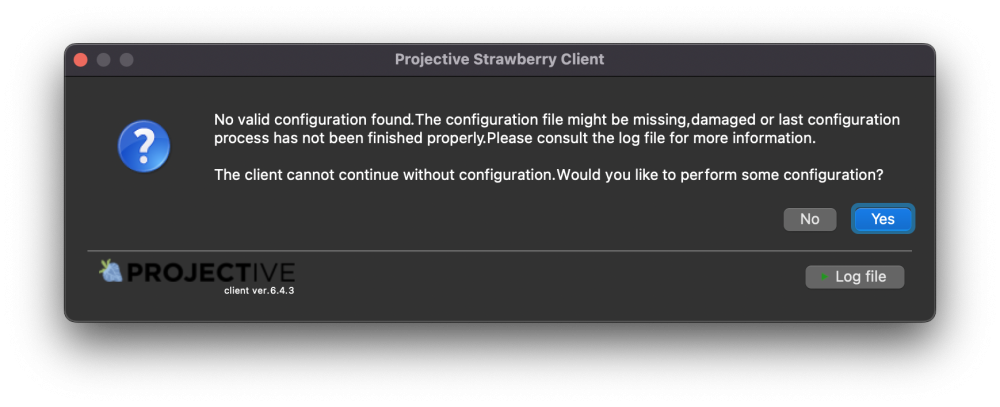

1. When you start the Strawberry client for the very first time, you will be greeted with a “No valid Configuration found.” message.

2. Click Yes to proceed.

Welcome Screen

3. On the next window you are offered to import an existing configuration file. If you have an existing configuration file, click on the Import button and select the file. This will pre-populate most values that are needed for the configuration. If you don’t have an existing configuration file click Next >. When clicking Next > you will be directed to the Server Configuration.

Server Configuration

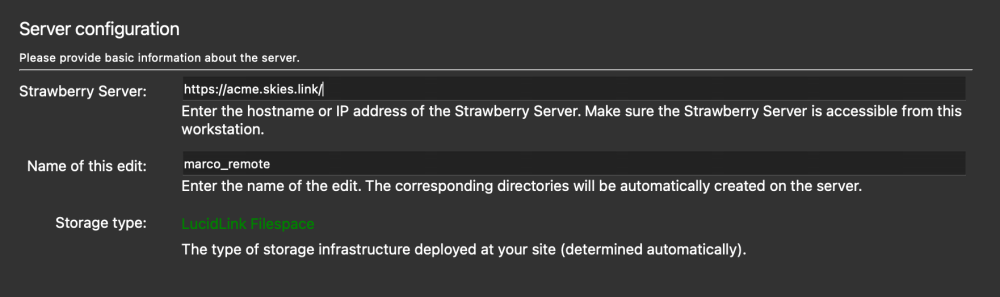

4. In the Server Configuration, you must enter…

  • .. the hostname or IP address of the Strawberry server. When using SSL, please type https:// in front of the hostname or IP address.
  • … the name of the edit on which you are currently performing the configuration. Please ensure that the edit name does not contain spaces, as this can cause problems with SMB down the line.

The “Storage Type” will be automatically set to “Shared Edits Mode”.

5. When finished click Next >.

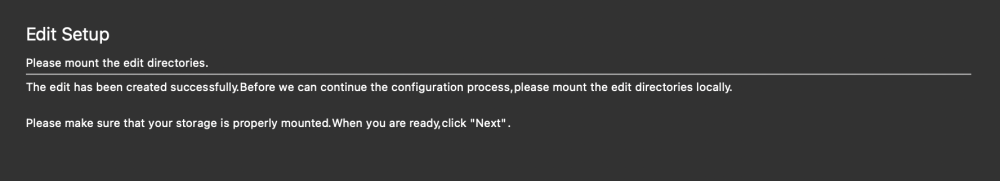

6. The client will now inform you that the storage needs to be mounted in order to proceed with the configuration process. media_1/media is mounted on the client computer and it can be accessed.

7. Click Next > to proceed. You will be directed to a page called “Shared Edits mounts configuration”.

Shared Edits Mount Configuration

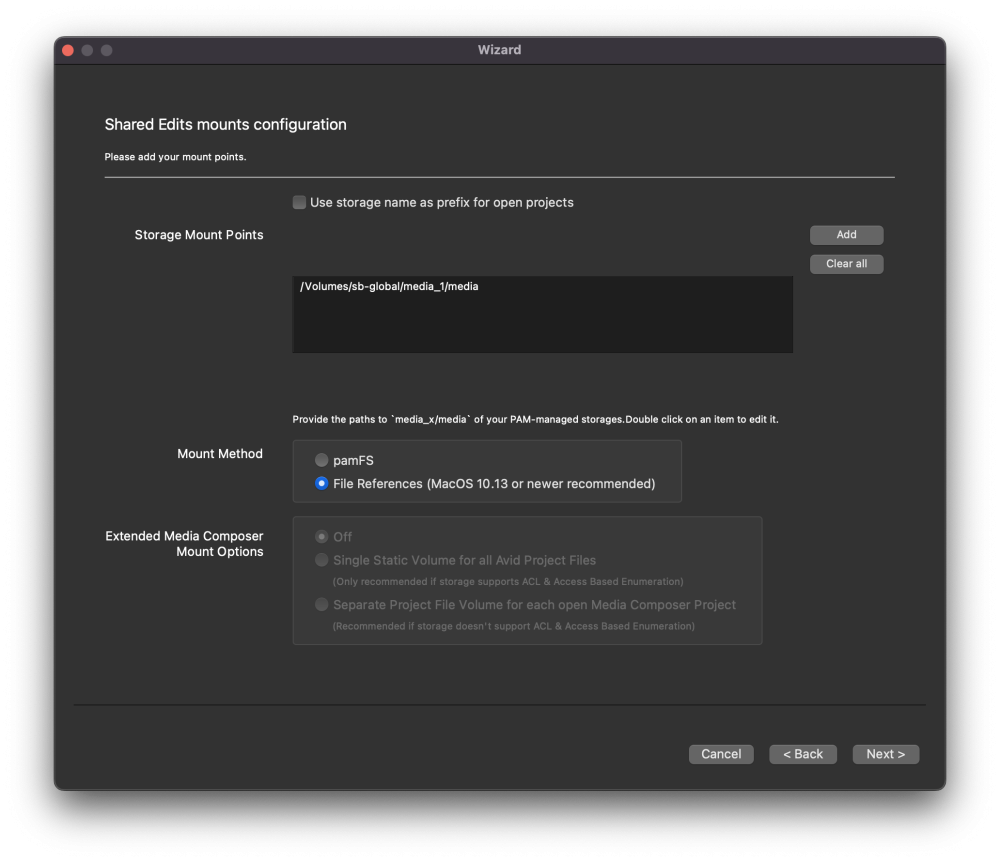

9. In the “Shared Edits mounts configuration” you need to provide the following information:

  • Use storage name as prefix for open projects: Only check this box, if your Strawberry server manages more than one physical storage volume. Otherwise, keep the box unchecked.
  • Storage mount points: Click the Add button and navigate to media_1/media on your storage. Then click open to set the path.
  • Mount Method: If this PC is not running Avid Media Composer use File References. If Media Composer is used on this computer, use pamFS.
  • Extended Media Composer Mount Options: Please click here to learn more about these settings.

10. Click Next > to proceed. You will be directed to a page named Paths to editing applications (Aka. App Launcher)

App Launcher

11. Please visit the App Launcher Configuration chapter to learn how to configure App Launcher.
12. When finished, click Next >. You will be directed to the “Miscellaneous Options”.

Miscellaneous Options

  • Desktop Shortcut: When opening a project, Strawberry will create a desktop shortcut to the project mount. This is a convenience feature for users.
  • Perform UID/GID challenge: This is a debug setting for support purposes. Only change this when instructed by support.
  • Storage Whitelist
  • Library Paths

13. Click Finish to finalize the configuration. The client will restart automatically.

Last modified: Sep 10, 2024
